• Heavy-duty angle bracket, reinforced, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with ETA-08/0165, Depth: 105 mm, Height: 105 mm, Width: 90 mm, Material thickness: 3.00 mm, No. of holes: 4 / 22, Hole: Ø13 / Ø5 mm, CutCase
  • Heavy-duty angle bracket, reinforced, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with ETA-08/0165, Depth: 105 mm, Height: 105 mm, Width: 90 mm, Material thickness: 3.00 mm, No. of holes: 4 / 22, Hole: Ø13 / Ø5 mm, CutCase

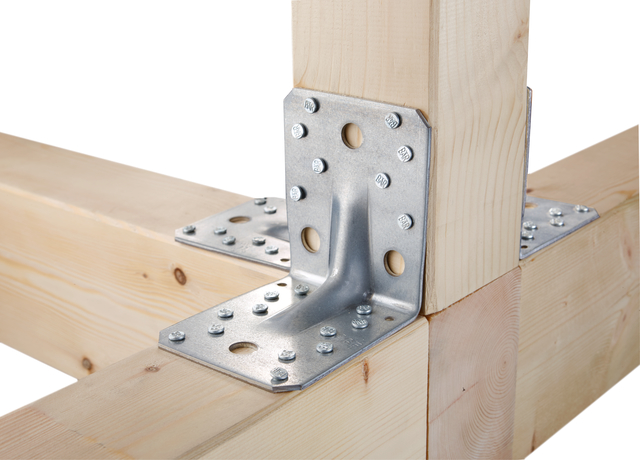

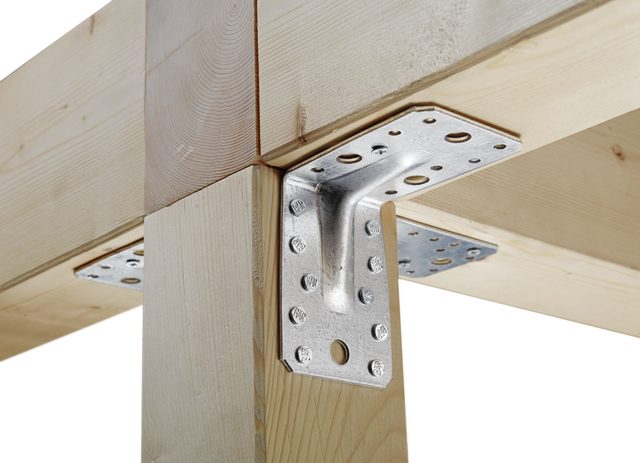

Heavy-duty angle bracket, reinforced

Art.-No. 330606
7 Variants
Dimension a:
105 mm
Dimension b:
105 mm
Dimension c:
90 mm
Fastening type:
for screwing on
Material thickness:
3 mm
Quantity x hole Ø:
4 x Ø13 mm
Quantity x hole Ø:
22 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165
Surface / Colour:
VERZ
Material:
Steel
Approval:
Europ.techn.app. ETA-08/0165
Width:
90 mm
Height:
105 mm
Depth:
105 mm
Weight per UQ (kg):
0.399 kg
Contents Unit:
20 Piece
