• Heavy-duty angle bracket, reinforced, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with ETA-08/0165, Depth: 50 mm, Height: 77 mm, Width: 64 mm, Material thickness: 2.00 mm, No. of holes: 2 / 13, Hole: 11 x 22 / Ø5 mm, CutCase
  • Heavy-duty angle bracket, reinforced, Material: raw steel, Surface: sendzimir galvanised, with CE marking in accordance with ETA-08/0165, Depth: 50 mm, Height: 77 mm, Width: 64 mm, Material thickness: 2.00 mm, No. of holes: 2 / 13, Hole: 11 x 22 / Ø5 mm, CutCase

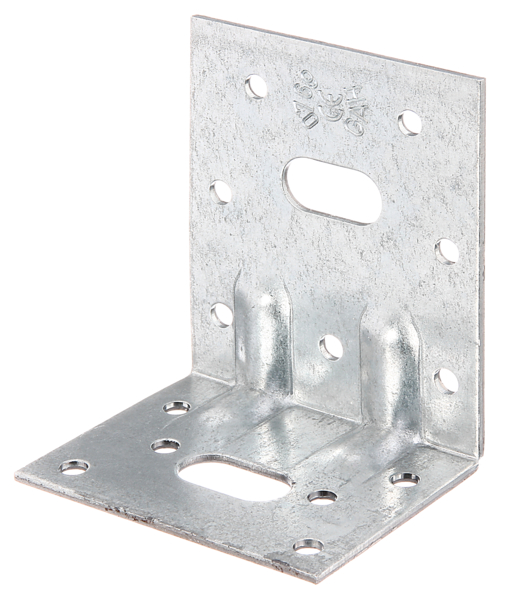

Heavy-duty angle bracket, reinforced

Art.-No. 335717

raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165

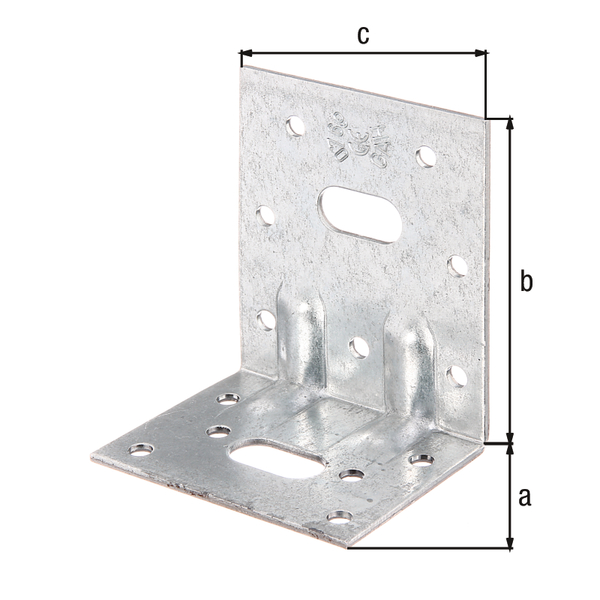

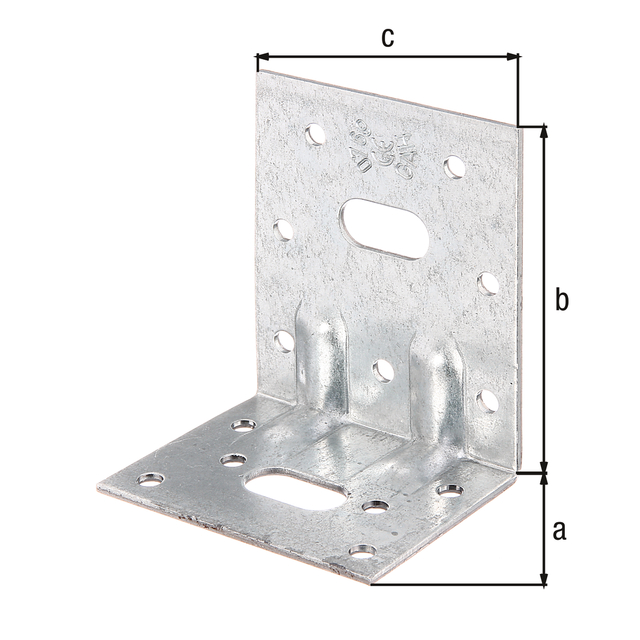

Dimension a:
50 mm
Dimension b:
77 mm
Dimension c:
64 mm
Fastening type:
for screwing on
Material thickness:
2 mm
Quantity x hole (LxW):
2 x ( 11 x 22 ) mm
Quantity x hole Ø:
13 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised, with CE marking in accordance with ETA-08/0165
Surface / Colour:
VERZ
Material:
Steel
Approval:
Europ.techn.app. ETA-08/0165
Width:
64 mm
Height:
77 mm
Depth:
50 mm
Weight per UQ (kg):
0.125 kg
Contents Unit:
50 Piece
