• Perforated angle plate with fixing claw for driving in, Material: raw steel, Surface: sendzimir galvanised, Depth: 60 mm, Height: 60 mm, Width: 40 mm, Material thickness: 1.50 mm, No. of holes: 12, Hole: Ø4.5 mm, CutCase
  • Perforated angle plate with fixing claw for driving in, Material: raw steel, Surface: sendzimir galvanised, Depth: 60 mm, Height: 60 mm, Width: 40 mm, Material thickness: 1.50 mm, No. of holes: 12, Hole: Ø4.5 mm, CutCase

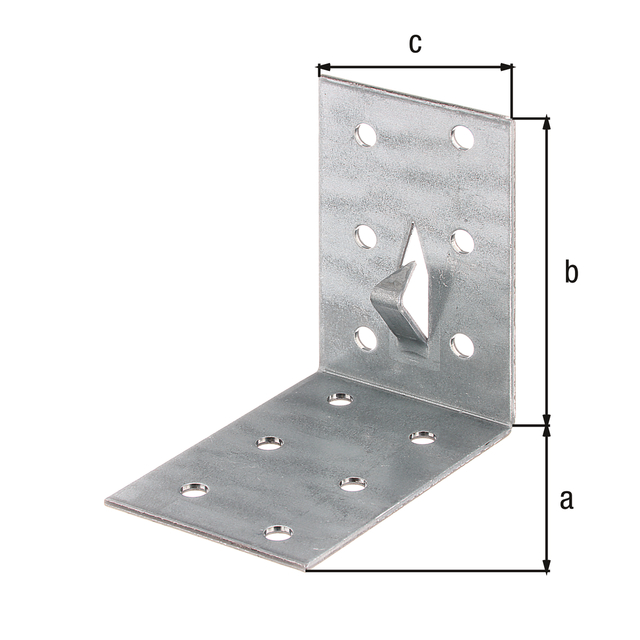

Perforated angle plate with fixing claw for driving in

Art.-No. 339821

raw steel, sendzimir galvanised

2 Variants
Dimension a:
60 mm
Dimension b:
60 mm
Dimension c:
40 mm
Fastening type:
for screwing on
Material thickness:
1.5 mm
Quantity x hole Ø:
12 x Ø4.5 mm
Material/surface:
raw steel, sendzimir galvanised
Surface / Colour:
VERZ
Material:
Steel
Width:
40 mm
Height:
60 mm
Depth:
60 mm
Weight per UQ (kg):
0.074 kg
Contents Unit:
25 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No. 339821
Dimension a 60 mm
Dimension b 60 mm
Dimension c 40 mm
Fastening type for screwing on

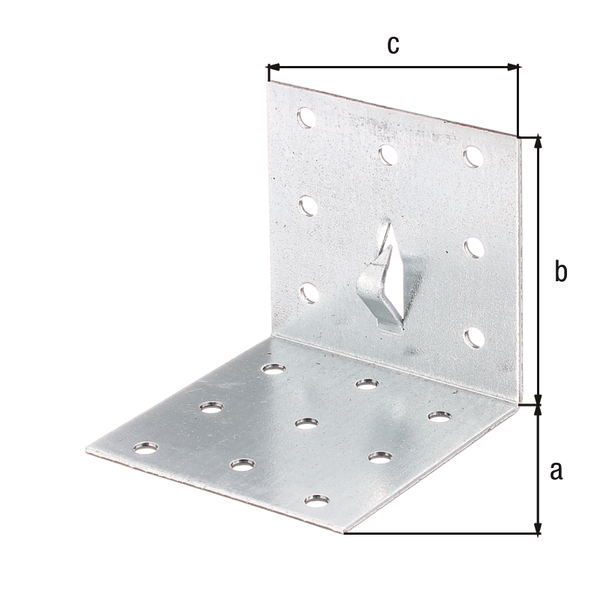

Article-No. 339838
Dimension a 60 mm
Dimension b 60 mm
Dimension c 60 mm
Fastening type for screwing on
  • Perforated plate angle connector with extended claw fastener that holds the connector securely to the wood after it is driven in and so allows the unit to be screwed together easily.
