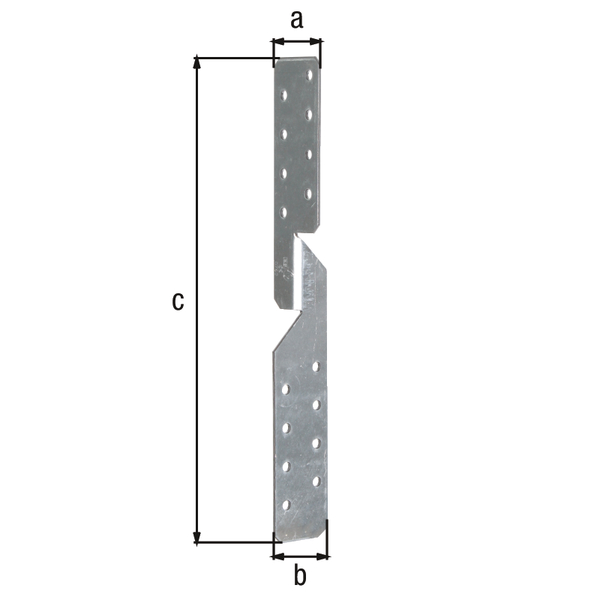

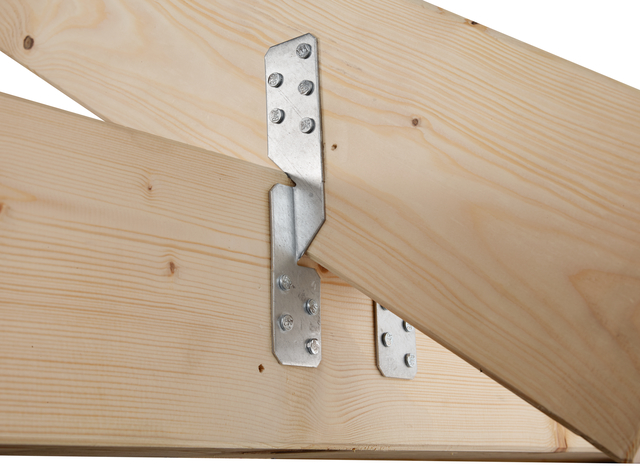

Rafter purlin anchor

multifunctional
Art.-No. 338091

raw steel, sendzimir galvanised, with CE marking in accordance with ETA-14/0105

3 Variants
Dimension a:
33 mm
Dimension b:
33 mm
Dimension c:
250 mm
Fastening type:
for screwing on
Material thickness:
2 mm
Quantity x hole Ø:
16 x Ø5 mm
Material/surface:
raw steel, sendzimir galvanised, with CE marking in accordance with ETA-14/0105
Surface / Colour:
VERZ
Material:
Steel
Approval:
Europ.techn.app. ETA-14/0105
Width:
33 mm
Height:
250 mm
Depth:
33 mm
Weight per UQ (kg):
0.124 kg
Contents Unit:
50 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Fastening type
Action
Article-No. 338077
Dimension a 33 mm
Dimension b 33 mm
Dimension c 170 mm
Fastening type for screwing on

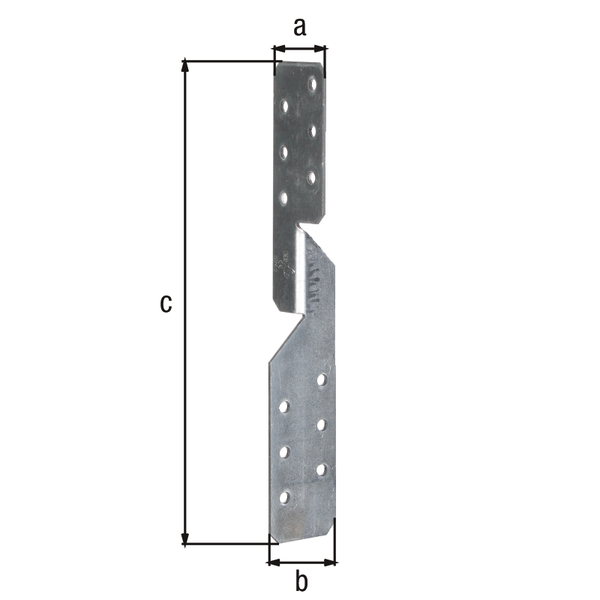

Article-No. 338084
Dimension a 33 mm
Dimension b 33 mm
Dimension c 210 mm
Fastening type for screwing on
Article-No. 338091
Dimension a 33 mm
Dimension b 33 mm
Dimension c 250 mm
Fastening type for screwing on
