• Toothed wood connector, Material: raw steel, Surface: sendzimir galvanised, with marking in accordance with EN 14545, External dia.: 62 mm, Inner dia.: 12 mm, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase
  • Toothed wood connector, Material: raw steel, Surface: sendzimir galvanised, with marking in accordance with EN 14545, External dia.: 62 mm, Inner dia.: 12 mm, Designed for standard cross-sections made from solid structural timber (SST) and glued laminated timber (glulam), CutCase

Toothed wood connector

Art.-No. 334420

raw steel, sendzimir galvanised, with marking in accordance with EN 14545

3 Variants

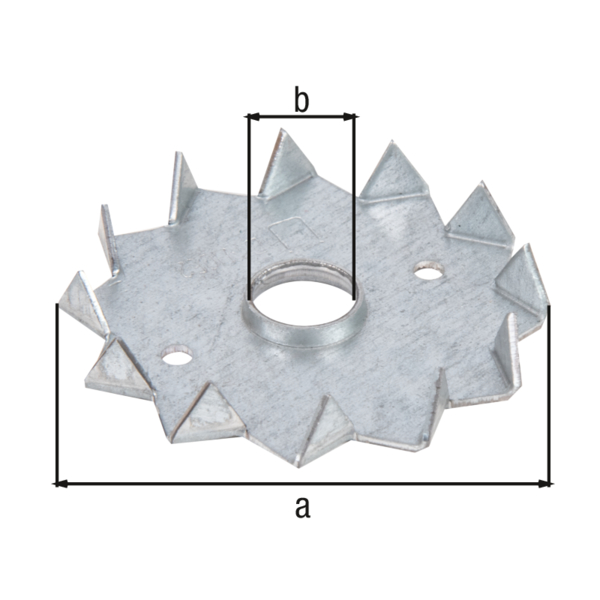

Dimension a-Ø:
62 mm
Dimension b-Ø:
12 mm
Fastening type:
for screwing on
Material/surface:
raw steel, sendzimir galvanised, with marking in accordance with EN 14545
Surface / Colour:
VERZ
Material:
Steel
:
62 mm
:
12 mm
Approval:
EN14545:2008
Weight per UQ (kg):
0.025 kg
For screw:
M12
Contents Unit:
100 Piece
Article-No.
Dimension a-Ø
Dimension b-Ø
Fastening type
Material/surface
Action
Article-No. 334413
Dimension a-Ø 50 mm
Dimension b-Ø 12 mm
Fastening type for screwing on
Material/surface raw steel, sendzimir galvanised, with marking in accordance with EN 14545
Article-No. 334420
Dimension a-Ø 62 mm
Dimension b-Ø 12 mm
Fastening type for screwing on
Material/surface raw steel, sendzimir galvanised, with marking in accordance with EN 14545
Article-No. 337438
Dimension a-Ø 75 mm
Dimension b-Ø 16 mm
Fastening type for screwing on
Material/surface raw steel, sendzimir galvanised, with marking in accordance with EN 14545
  • type C2, one-sided with teeth
  • produced in accordance with EN912 (DIN 1052)
