• Fence bracket U shape, Material: raw steel, Surface: galvanised, thick-film passivated, Total height: 83 mm, Width: 38 mm, Depth: 30 mm, Height: 38 mm, Drive: hexagon head (star) size 30, Material thickness: 2.00 mm, Wooden thread Ø: 8 x 45 mm, No. of holes: 2, Hole: Ø4.5 mm
  • Fence bracket U shape, Material: raw steel, Surface: galvanised, thick-film passivated, Total height: 83 mm, Width: 38 mm, Depth: 30 mm, Height: 38 mm, Drive: hexagon head (star) size 30, Material thickness: 2.00 mm, Wooden thread Ø: 8 x 45 mm, No. of holes: 2, Hole: Ø4.5 mm

Fence bracket U shape

Art.-No. 213374

raw steel, galvanised, thick-film passivated

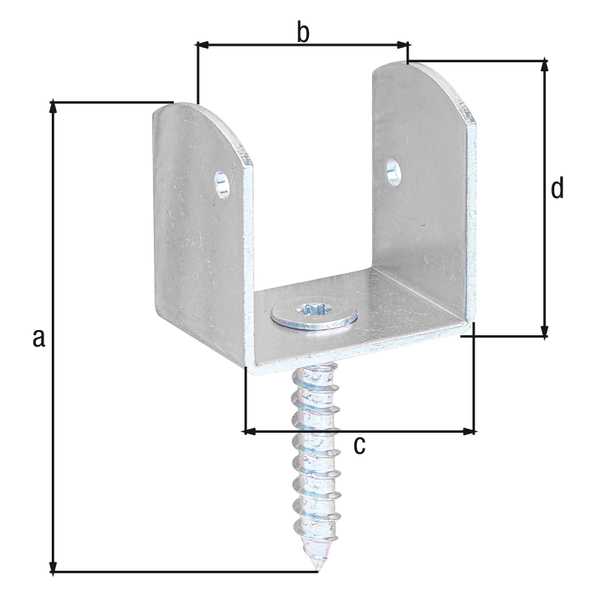

Dimension a:
83 mm
Dimension b:
38 mm
Dimension c:
30 mm
Dimension d:
38 mm
Wooden thread Ø:
8 x 45 mm
Drive:
hexagon head (star) size 30
Fastening type:
for screwing on
Material thickness:
2 mm
Quantity x hole Ø:
2 x Ø4.5 mm
Material/surface:
raw steel, galvanised, thick-film passivated
Surface / Colour:
VERZ
Material:
Steel
Width:
38 mm
Height:
38 mm
Depth:
30 mm
:
83 mm
Weight per UQ (kg):
0.076 kg
Contents Unit:
100 Piece
  • with wood screw
  • Holes with Ø 6 mm must be predrilled in the timber post before the fence bracket can be installed.
