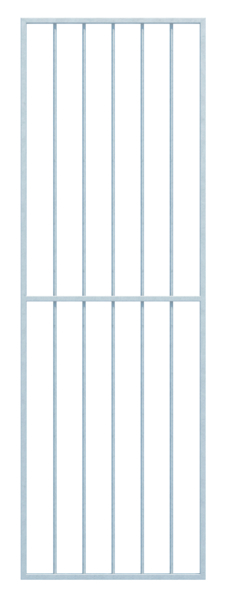

Window grille Basic I in customised dimensions
for mounting in the window reveal or on the outside wall
Art.-No. 564292
- reveal width:
- 571 - 945 mm
- reveal height:
- 1401 - 2000 mm
- Frame width:
- 651 - 1025 mm
- Frame height:
- 1401 - 2000 mm
- Frame thickness:
- 30 x 20 mm
- Note on filler material:
- Round bar
- Filler material Ø:
- 12 mm
- Traverse:
- with
- Number of attachment points:
- 8
- :
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised passivated, mounting on the wall
- Systems:
- Basic I
- Surface / Colour:
- FVZ
- Weight per UQ (kg):
- 24.149 kg
- Contents Unit:
- 1 Piece
Article-No.
reveal width
reveal height
Frame width
Frame height
Action
Article-No.
564209
reveal width
320 - 570 mm
reveal height
400 - 800 mm
Frame width
400 - 650 mm
Frame height
400 - 800 mm
Article-No.
564216
reveal width
571 - 945 mm
reveal height
400 - 800 mm
Frame width
651 - 1025 mm
Frame height
400 - 800 mm
Article-No.
564223
reveal width
946 - 1320 mm
reveal height
400 - 800 mm
Frame width
1026 - 1400 mm
Frame height
400 - 800 mm
Article-No.
564230
reveal width
1321 - 1820 mm
reveal height
400 - 800 mm
Frame width
1401 - 1900 mm
Frame height
400 - 800 mm
Article-No.
564247
reveal width
320 - 570 mm
reveal height
801 - 1400 mm
Frame width
400 - 650 mm
Frame height
801 - 1400 mm
Article-No.
564254
reveal width
571 - 945 mm
reveal height
801 - 1400 mm
Frame width
651 - 1025 mm
Frame height
801 - 1400 mm
Article-No.
564261
reveal width
946 - 1320 mm
reveal height
801 - 1400 mm
Frame width
1026 - 1400 mm
Frame height
801 - 1400 mm
Article-No.
564278
reveal width
1321 - 1820 mm
reveal height
801 - 1400 mm
Frame width
1401 - 1900 mm
Frame height
801 - 1400 mm
Article-No.
564285
reveal width
320 - 570 mm
reveal height
1401 - 2000 mm
Frame width
400 - 650 mm
Frame height
1401 - 2000 mm
Article-No.
564292
reveal width
571 - 945 mm
reveal height
1401 - 2000 mm
Frame width
651 - 1025 mm
Frame height
1401 - 2000 mm
Article-No.
564308
reveal width
946 - 1320 mm
reveal height
1401 - 2000 mm
Frame width
1026 - 1400 mm
Frame height
1401 - 2000 mm
Article-No.
564315
reveal width
1321 - 1820 mm
reveal height
1401 - 2000 mm
Frame width
1401 - 1900 mm
Frame height
1401 - 2000 mm
- Window grille customised production on request
- please indicate the reveal width and the reveal height as dimensions
- When mounting the window grille to the wall, the window grille must be wide enough so that the fixing drill holes are at least 80 mm from the window reveal. Otherwise the masonry may break.
- Please order the fastening and screw sets separately.
