• Window grille Basic I in customised dimensions, for mounting in the window reveal or on the outside wall, Material: raw steel, Surface: hot-dip galvanised passivated, mounting on the wall, reveal width: 571 - 945 mm, reveal height: 400 - 800 mm, Frame width: 651 - 1025 mm, Frame height: 400 - 800 mm, Frame thickness: 20 x 20 mm, Filler material Ø: 12 mm, Number of attachment points: 4, Traverse: without, 15-year warranty against rusting through

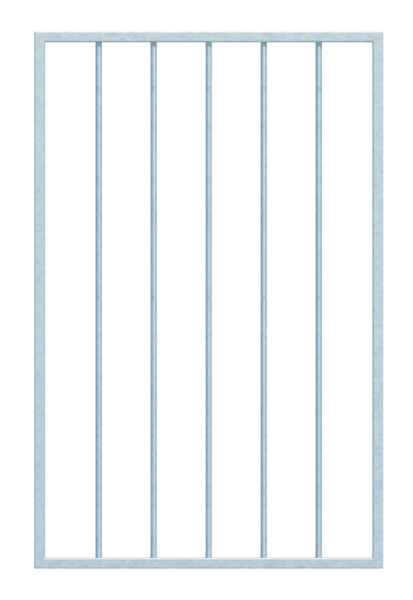

Window grille Basic I in customised dimensions

for mounting in the window reveal or on the outside wall
Art.-No. 564216

reveal width:
571 - 945 mm
reveal height:
400 - 800 mm
Frame width:
651 - 1025 mm
Frame height:
400 - 800 mm
Frame thickness:
20 x 20 mm
Note on filler material:
Round bar
Filler material Ø:
12 mm
Traverse:
without
Number of attachment points:
4
:
15 years
Material/surface:
raw steel, hot-dip galvanised passivated, mounting on the wall
Systems:
Basic I
Surface / Colour:
FVZ
Weight per UQ (kg):
9.66 kg
Contents Unit:
1 Piece
Article-No.
reveal width
reveal height
Frame width
Frame height
Action
Article-No. 564209
reveal width 320 - 570 mm
reveal height 400 - 800 mm
Frame width 400 - 650 mm
Frame height 400 - 800 mm
Article-No. 564216
reveal width 571 - 945 mm
reveal height 400 - 800 mm
Frame width 651 - 1025 mm
Frame height 400 - 800 mm
Article-No. 564223
reveal width 946 - 1320 mm
reveal height 400 - 800 mm
Frame width 1026 - 1400 mm
Frame height 400 - 800 mm
Article-No. 564230
reveal width 1321 - 1820 mm
reveal height 400 - 800 mm
Frame width 1401 - 1900 mm
Frame height 400 - 800 mm
Article-No. 564247
reveal width 320 - 570 mm
reveal height 801 - 1400 mm
Frame width 400 - 650 mm
Frame height 801 - 1400 mm
Article-No. 564254
reveal width 571 - 945 mm
reveal height 801 - 1400 mm
Frame width 651 - 1025 mm
Frame height 801 - 1400 mm
Article-No. 564261
reveal width 946 - 1320 mm
reveal height 801 - 1400 mm
Frame width 1026 - 1400 mm
Frame height 801 - 1400 mm
Article-No. 564278
reveal width 1321 - 1820 mm
reveal height 801 - 1400 mm
Frame width 1401 - 1900 mm
Frame height 801 - 1400 mm
Article-No. 564285
reveal width 320 - 570 mm
reveal height 1401 - 2000 mm
Frame width 400 - 650 mm
Frame height 1401 - 2000 mm
Article-No. 564292
reveal width 571 - 945 mm
reveal height 1401 - 2000 mm
Frame width 651 - 1025 mm
Frame height 1401 - 2000 mm
Article-No. 564308
reveal width 946 - 1320 mm
reveal height 1401 - 2000 mm
Frame width 1026 - 1400 mm
Frame height 1401 - 2000 mm
Article-No. 564315
reveal width 1321 - 1820 mm
reveal height 1401 - 2000 mm
Frame width 1401 - 1900 mm
Frame height 1401 - 2000 mm
  • Window grille customised production on request
  • please indicate the reveal width and the reveal height as dimensions
  • When mounting the window grille to the wall, the window grille must be wide enough so that the fixing drill holes are at least 80 mm from the window reveal. Otherwise the masonry may break.
  • Please order the fastening and screw sets separately.
