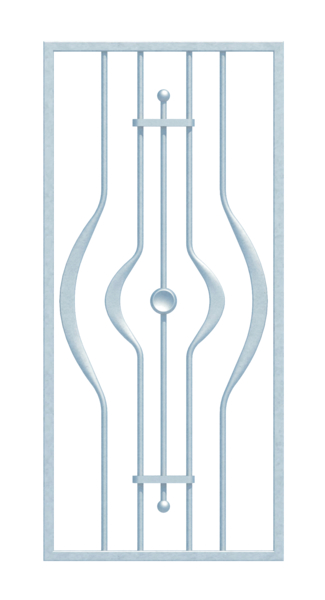

Window grille Frankfurt in customised dimensions

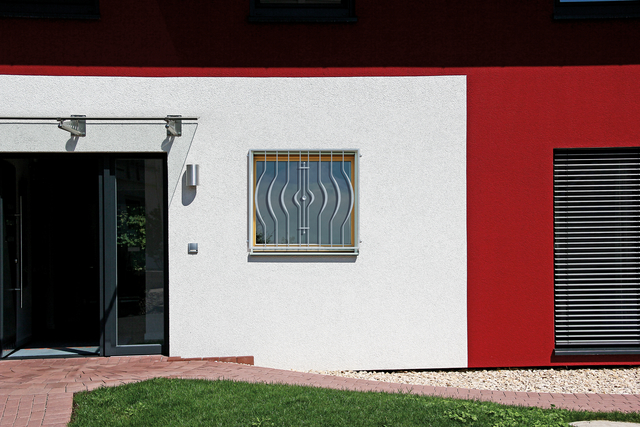

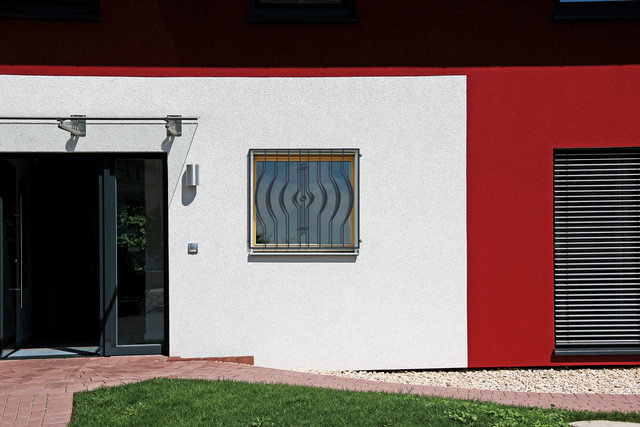

for mounting in the window reveal or on the outside wall
Art.-No. 564445
- reveal width:
- 320 - 570 mm
- reveal height:
- 880 - 1160 mm
- Frame width:
- 400 - 650 mm
- Frame height:
- 880 - 1160 mm
- Frame thickness:
- 30 x 20 mm
- Note on filler material:

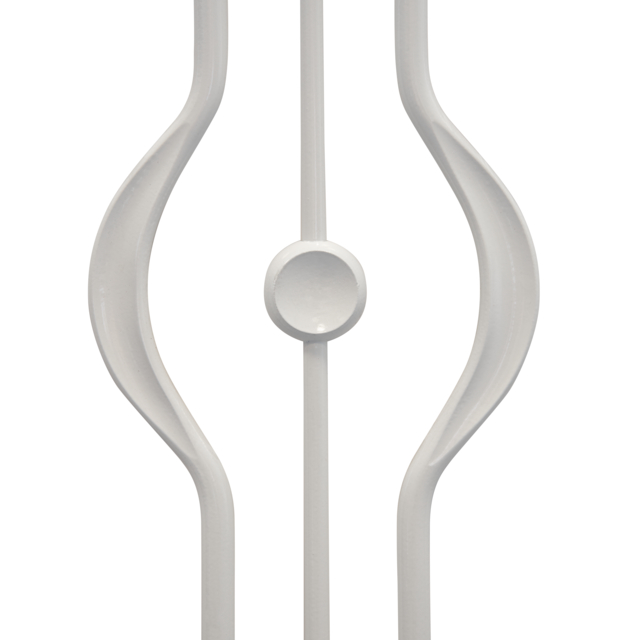

- Round bar
- Filler material Ø:
- 16 mm
- Traverse:
- without
- Number of attachment points:
- 4
- :
- 15 years
- Material/surface:
- raw steel, hot-dip galvanised passivated, mounting on the wall
- Systems:
- Frankfurt
- Surface / Colour:
- FVZ
- Weight per UQ (kg):
- 17.786 kg
- Contents Unit:
- 1 Piece
Article-No.
reveal width
reveal height
Frame width
Frame height
Action
Article-No.
564445
reveal width
320 - 570 mm
reveal height
880 - 1160 mm
Frame width
400 - 650 mm
Frame height
880 - 1160 mm
Article-No.
564452
reveal width
571 - 945 mm
reveal height
880 - 1160 mm
Frame width
651 - 1025 mm
Frame height
880 - 1160 mm
Article-No.
564469
reveal width
946 - 1170 mm
reveal height
880 - 1160 mm
Frame width
1026 - 1250 mm
Frame height
880 - 1160 mm
- Window grille customised production on request
- please indicate the reveal width and the reveal height as dimensions

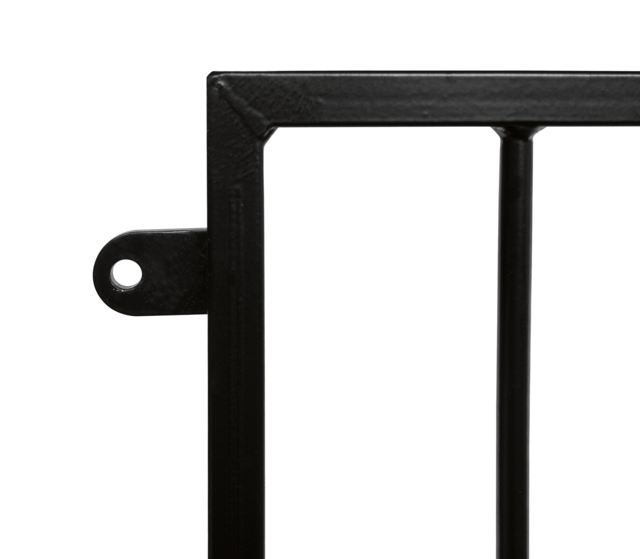

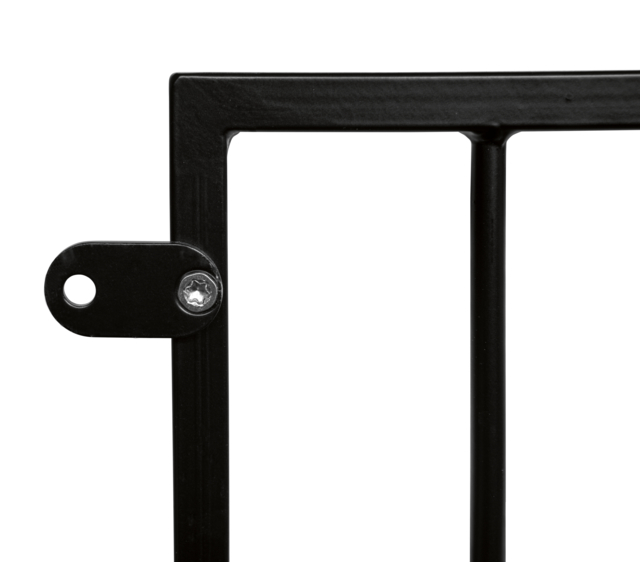

- When mounting the window grille to the wall, the window grille must be wide enough so that the fixing drill holes are at least 80 mm from the window reveal. Otherwise the masonry may break.
- Please order the fastening and screw sets separately.
