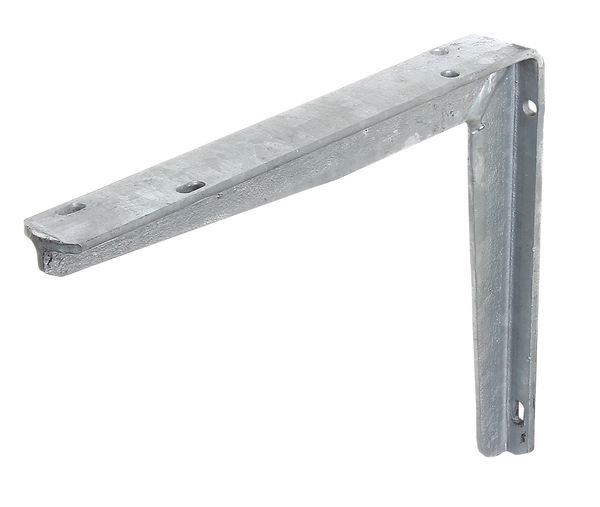

Shelf bracket, made of T profile
Art.-No. 800703
raw steel, hot-dip galvanised

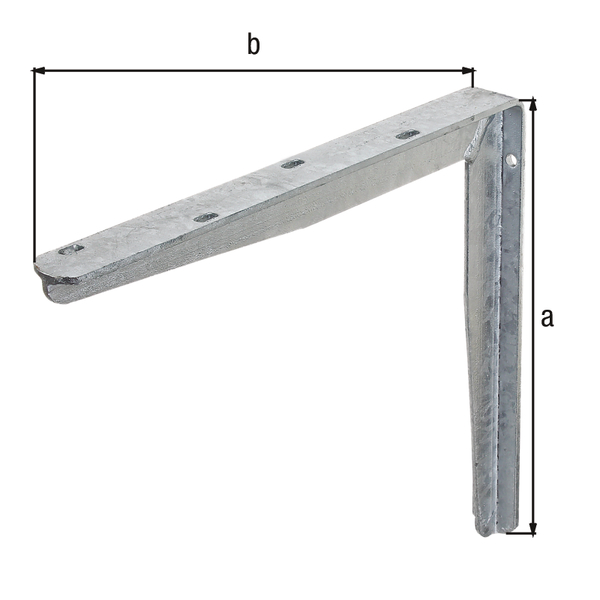

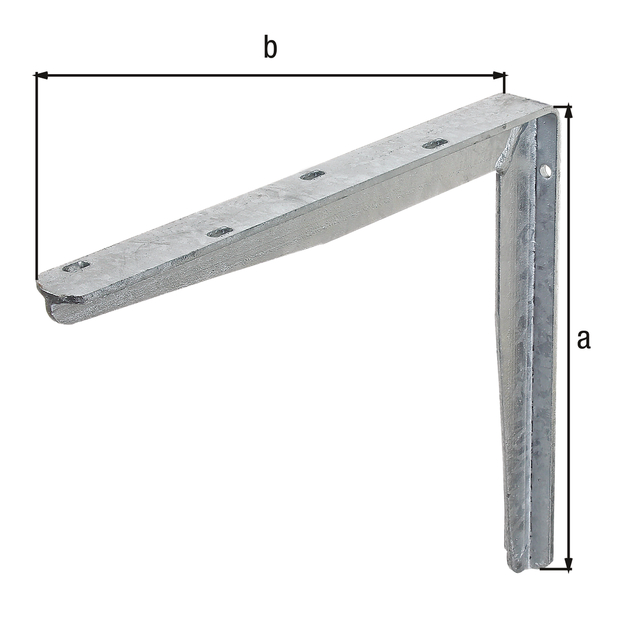

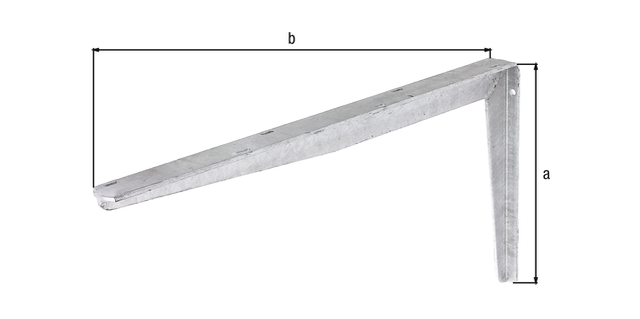

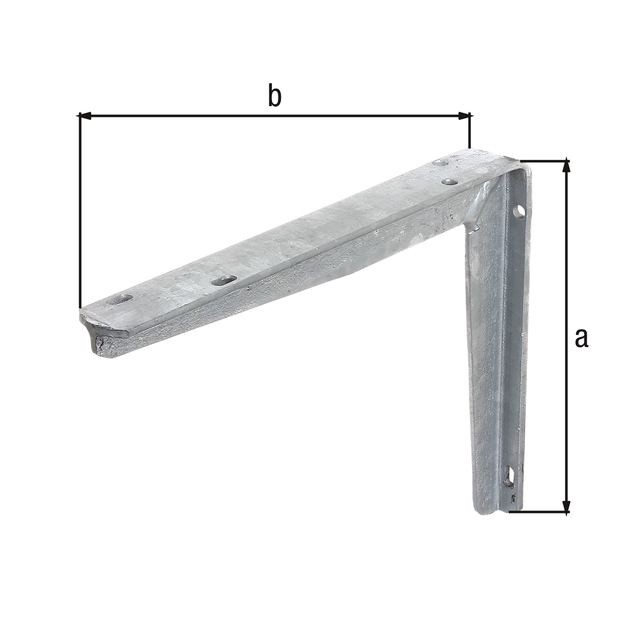

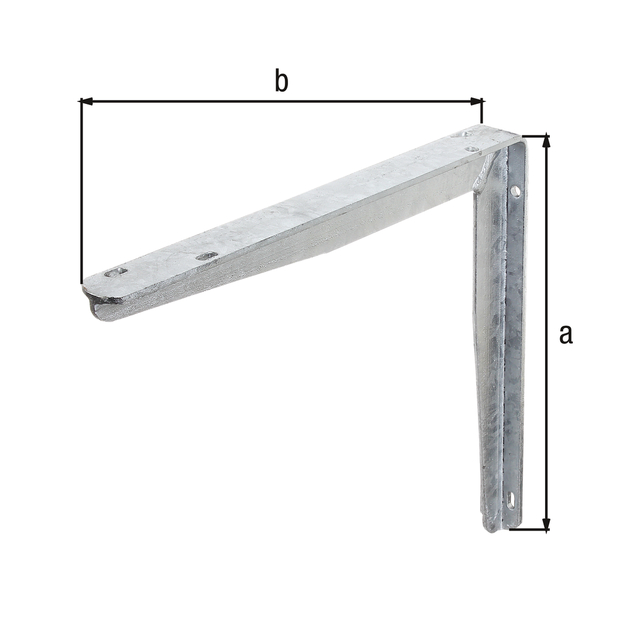

- Dimension a:
- 200 mm
- Dimension b:
- 250 mm
- Max. load capacity:
- 225 kg
- T iron:
- 30 x 30 x 4 mm
- Material/surface:
- raw steel, hot-dip galvanised
- Surface / Colour:
- FVZ
- Material:
- Steel
- Height:
- 200 mm
- Depth:
- 250 mm
- Application / Type:
- KONS
- Weight per UQ (kg):
- 0.760 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Max. load capacity
T iron
Action
Article-No.
800703
Dimension a
200 mm
Dimension b
250 mm
Max. load capacity
225 kg
T iron
30 x 30 x 4 mm
Article-No.
800710
Dimension a
250 mm
Dimension b
300 mm
Max. load capacity
250 kg
T iron
30 x 30 x 4 mm
Article-No.
800802
Dimension a
300 mm
Dimension b
400 mm
Max. load capacity
145 kg
T iron
40 x 40 x 5 mm
Article-No.
800819
Dimension a
300 mm
Dimension b
550 mm
Max. load capacity
110 kg
T iron
40 x 40 x 5 mm
- for very heavy wear and load
