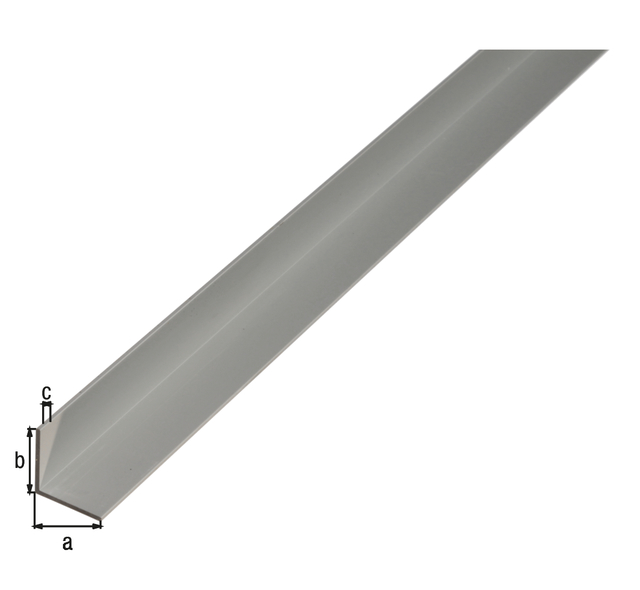

Angle profile
Art.-No. 029993
Aluminium, silver anodised
- Dimension a:
- 9.5 mm
- Dimension b:
- 7.5 mm
- Dimension c:
- 1.5 mm
- Length:
- 1000 mm
- For plate thickness:
- 6 - 8 mm
- Material/surface:
- Aluminium, silver anodised
- Surface / Colour:
- SILBR
- :
- 1.5 mm
- Width:
- 9,5 mm
- Height:
- 7,5 mm
- :
- WINK
- Weight per UQ (kg):
- 0.060 kg
- Contents Unit:
- 1 Piece
Article-No.
Dimension a
Dimension b
Dimension c
Length
Action
Article-No.
029993
Dimension a
9.5 mm
Dimension b
7.5 mm
Dimension c
1.5 mm
Length
1000 mm
Article-No.
030401
Dimension a
14.5 mm
Dimension b
11.5 mm
Dimension c
1.3 mm
Length
1000 mm
Article-No.
030685
Dimension a
19.8 mm
Dimension b
17.8 mm
Dimension c
1.5 mm
Length
1000 mm
Article-No.
030869

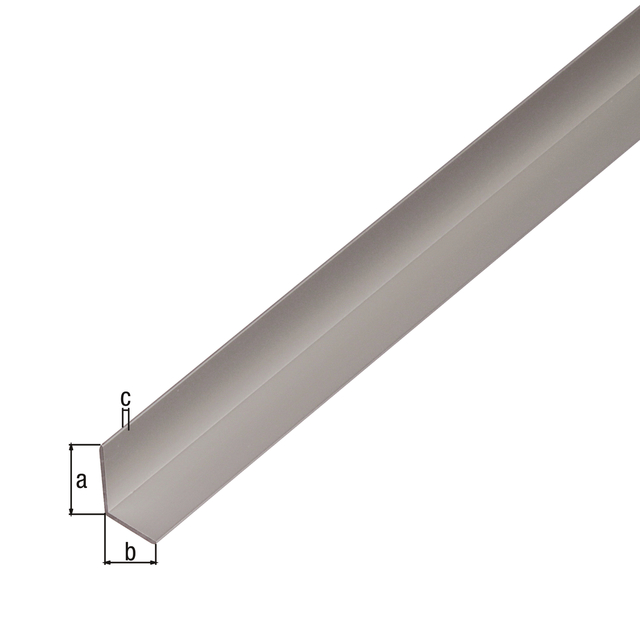

Dimension a
22.8 mm
Dimension b
19 mm
Dimension c
1.5 mm
Length
1000 mm
Article-No.
030005
Dimension a
9.5 mm
Dimension b
7.5 mm
Dimension c
1.5 mm
Length
2000 mm
Article-No.
030494
Dimension a
14.5 mm
Dimension b
11.5 mm
Dimension c
1.3 mm
Length
2000 mm
Article-No.
030692
Dimension a
19.8 mm
Dimension b
17.8 mm
Dimension c
1.5 mm
Length
2000 mm
Article-No.
030876
Dimension a
22.8 mm
Dimension b
19 mm
Dimension c
1.5 mm
Length
2000 mm
- designed to protect and decorate the edges of furniture or home-assembled shelves
- the sides with unequal leg lengths each cover two different material thicknesses
- Clean assembly and covering for cut edges
